Quantum One
Next-generation filtration and wastewater & heat recovery system
- Advanced wastewater recovery systems for a range of industrial applications and heavy-use facilities.

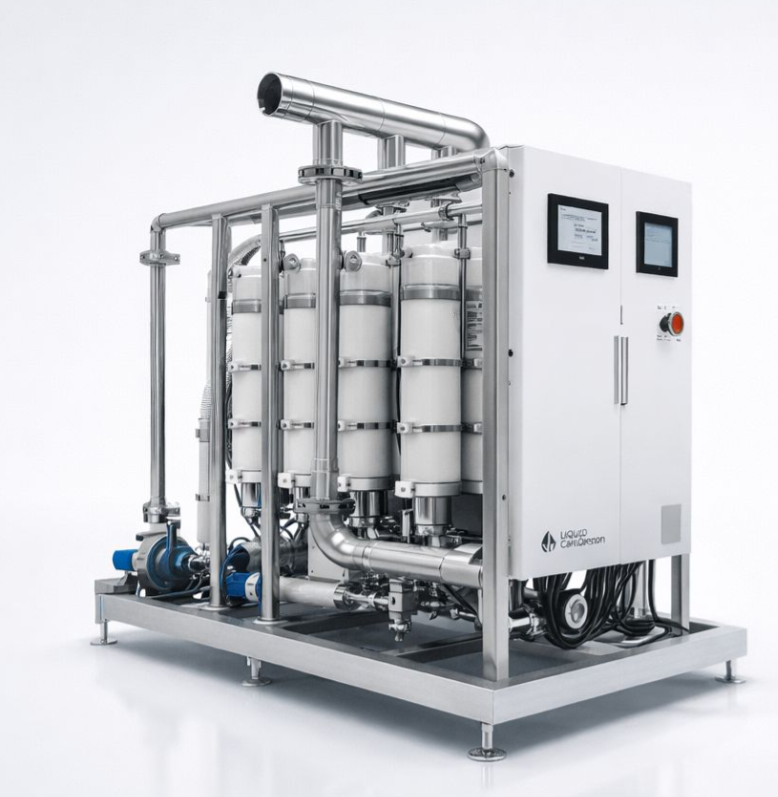

- Modern and Innovative Ceramic Sub-Micron Ultrafiltration
- Engineered to cut operational costs and deliver robust closed-loop industrial water Recovery & Reuse
- Modular Plug & Play - Low Footprint Containerised Configuration
Closed‑loop recovery and reuse means capturing wastewater or process water, treating it to the required quality, and recycling it back into the same process or site so little or no wastewater leaves the system.
Plus Wastewater Recovery & Heat Retention
0
%
Years Membrane Life & Low Maintenance
0
+
Biological Process Requirement
100
%
Layer Technology
10
Transforming industrial wastewater into value
Liquid Carbon Technologies UK Ltd delivers advanced wastewater recovery & heat retention systems engineered specifically for heavy-use industrial facilities.
Discover how Quantum One cuts overheads while securing your environmental compliance.
Wastewater Savings
Substantially lower your mains water consumption by reclaiming high-purity water directly from your process streams with sub-micron precision.
Effluent cost reductions
Mitigate strict trade discharge compliance penalties and slash recurring sewerage and effluent discharge charges through advanced filtration.
Heat recovery savings
Capture and redirect thermal energy from treated hot process water, significantly cutting facility heating energy expenditure.
Specifications and features
01
Wastewater Recovery Rate
Recovery back to Reuse processes
- Guaranteed 90% + wastewater recovery
- Regular 95% + daily recovery achievements
02
Easy Installation
Cost effective installations
- Zero Civils works required
- No large project design and management costs
03
Dimensions
2 containerised options:
- 40ft Module - 4M X 2M Skid Size
- 20ft Module - 2m x 2m Skid Size
04
Compatibility
No hassle commissioning
- Connects with existing water infrastructure
- Plugs seamlessly into inlets, outlets , tanks & pumps
05
Significant Cost Savings
Water, Wastewater, Heat and CO2 saved
- Dramatic OPEX reductions
- Proven utility cost SAVINGS
06
Base Module Capacity
Good levels of processing volumes
- 10 - 15 m3/hour
- AI Driven - 24 hour capability
07
Premium Components
Precision engineered parts
- Stainless Steel Industrial Pumps for long term reliability
- 316L (low carbon) Stainless Steel Pipework
08
Automated Cleaning
Programmed and efficient self care
- AI Driven automatic Clean in Place Technology
- Automatic AI sensor activated backwash system
09
Operator Friendly
Resource efficient and easy operation
- Tailored Touchscreen HMI
- Data management and reporting at your fingertips
10
AI Driven
Sensors monitor
- TDS & Turbidity
- Operating pressures & temperatures
11
Remote Internet Access
Ethernet Connection
- Second by Second AI monitoring
- Remote servicing and diagnostics
12
Additional Plug in capability
Tertiary add on train technology
- Additional dewatering stages
- End Of Pipe concentrate management stage
13
Low Turbidity
Standard Skid configuration
- Provides <0.1 NTU
- Further bespoke processing available
14
Compatibility
No hassle commissioning
- Connects with existing water infrastructure
- Plugs seamlessly into inlets, outlets , tanks & pumps
15
Scalability
Stackable Containerised Modules
- 20, 30, 40 m3/hour
- unlimited range potential
Modular & Containerised Installation
Prefabricated and factory built – delivered as a ready to go package
Quantum One is available in two modular size configurations
20 ft Configuration
Compact recovery module for lower-flow duties, or for sites where feed storage, pre-treatment and residual management are provided as separate modules.
Suitable for constrained sites, modular capacity expansion & staged deployment. Final equipment scope is confirmed against hydraulic duty & site interfaces.

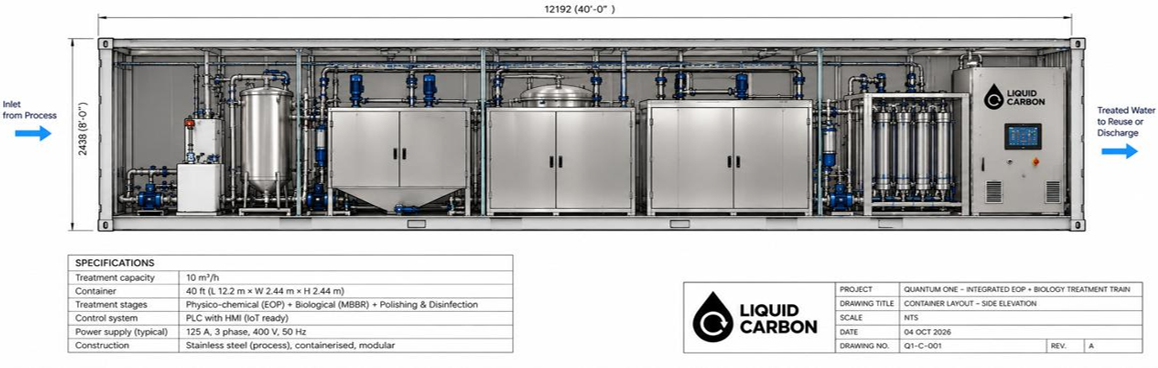

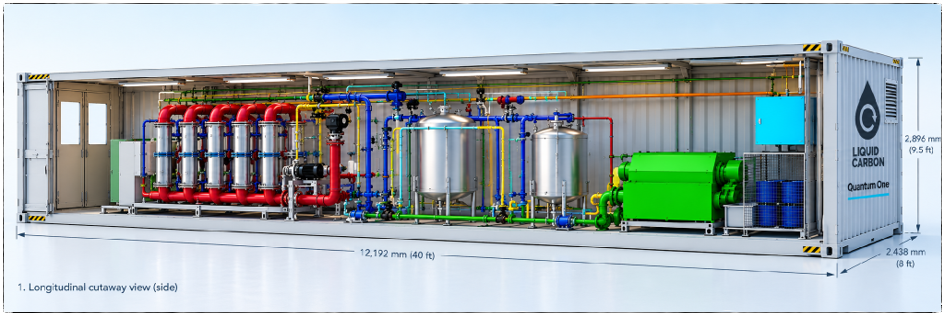

40 ft Configuration
Integrated configuration for the standard 10 m³/h duty, providing greater space for membrane capacity, process tanks, pumping, controls, instrumentation and service access.
Designed for outdoor installation with weather-protected enclosure, safe access to maintenance and defined utility/tie-in points. EOP integration separate, where required.
Beyond process wastewater recovery
Where you need that extra stage in recovery
The End of Pipe Solution
01
Liquid Carbon’s EOP platform treats the concentrated effluent remaining after ultra-high recovery, transforming the final waste stream into a controlled, treatable fraction.
02
This compact, modular treatment train combines equalisation, chemical treatment, high-rate solids separation, and coagulation/flocculation, with configurable downstream filtration and polishing tailored to the wastewater chemistry and discharge requirements.
03
The system is engineered to reduce COD, suspended solids, oils, grease, colour, and other contaminants, while concentrating removed material into a manageable sludge stream.
04
Integrated with Quantum One – or deployed independently – EOP extends water circularity beyond primary reuse, reducing discharge volumes, easing the burden on effluent treatment, and creating a pathway to progressively higher site-wide water recovery.
A choice of solutions
We offer a bespoke range of specialised solutions tailored to meet your individual operational needs and required outcomes.
But we understand there will be a lot of questions you will have
